Road markings

Across the carriageway

stop-line-at-signals-or-police-control

Stop line at signals or police control

stop-line-at-stop-sign

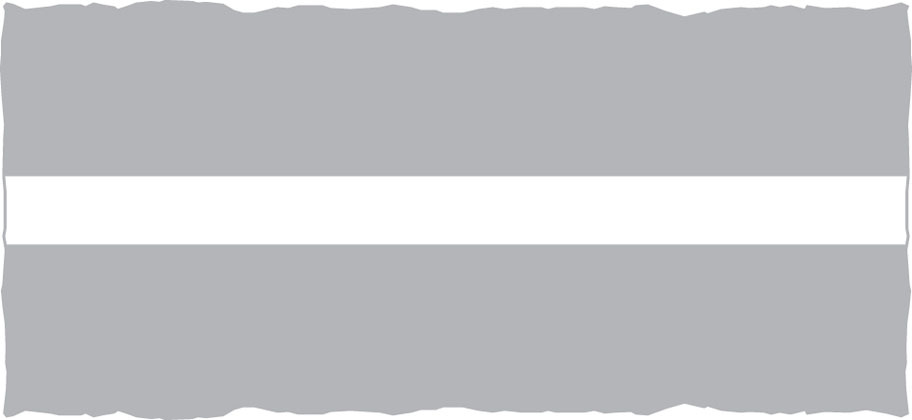

Stop line at ‘Stop’ sign

stop-line-for-pedestrians-at-a-level-crossing

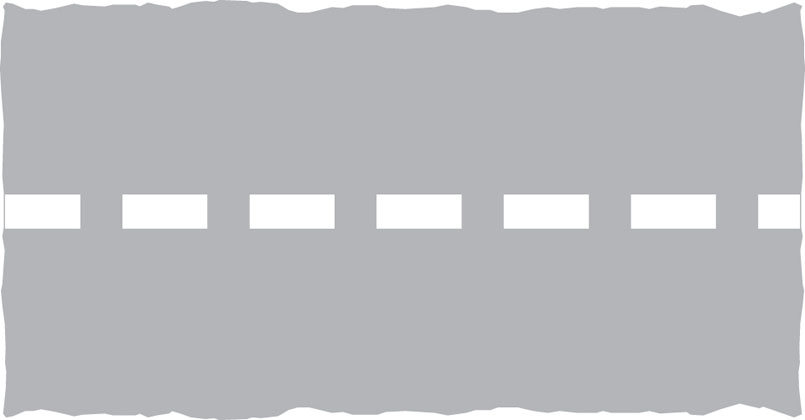

Stop line for pedestrians at a level crossing

give-way-to-traffic-on-major-road-can-also-be-used-at-mini-roundabouts

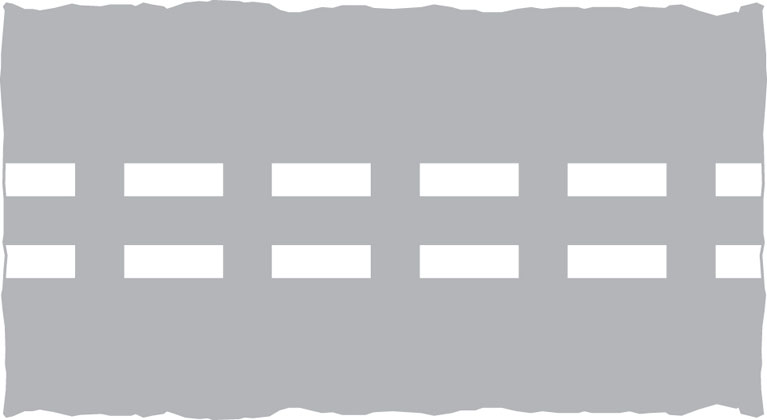

Give way to traffic on major road (can also be used at mini roundabouts)

give-way-to-traffic-from-the-right-at-a-roundabout

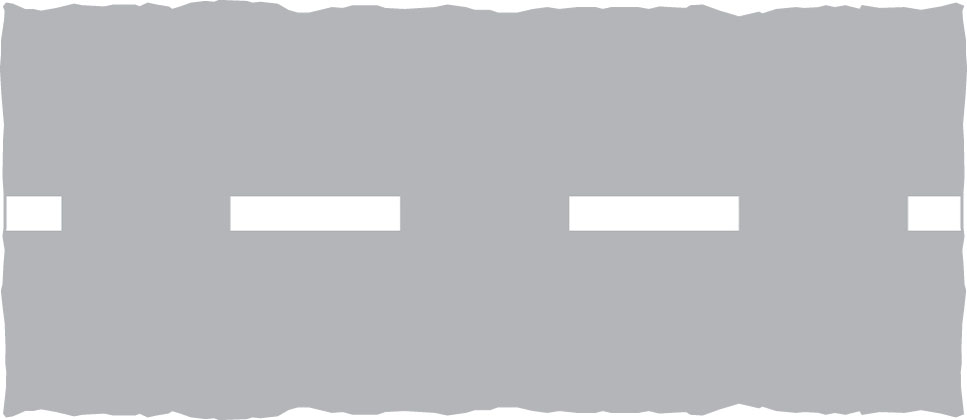

Give way to traffic from the right at a roundabout

give-way-to-traffic-from-the-right-at-a-mini-roundabout

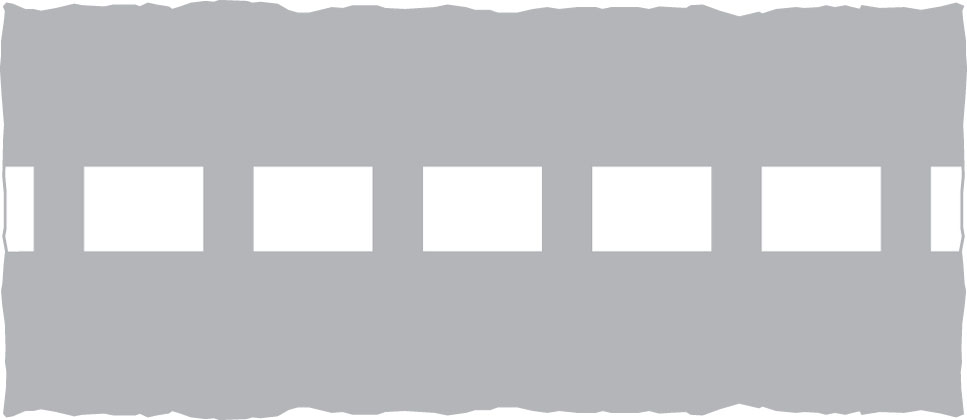

Give way to traffic from the right at a mini-roundabout

Along the carriageway

edge-line

Edge line

centre-line

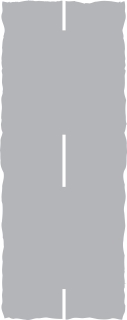

Centre line

hazard-warning-line

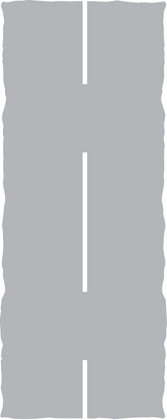

Hazard warning line

double-white-lines

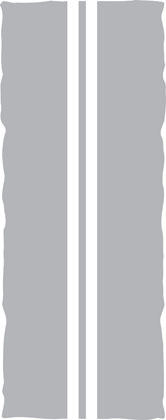

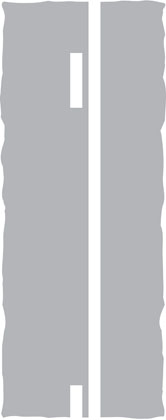

Double white lines

double-white-lines-a

Double white lines

lane-line

Lane line

areas-of-white-diagonal-stripes

Areas of white diagonal stripes

Along the edge of the carriageway

Waiting restrictions indicated by yellow lines apply to the carriageway, pavement and verge. You may stop to load or unload (unless there are also loading restrictions as described below) or while passengers board or alight. Double yellow lines mean no waiting at any time, unless there are signs that specifically indicate seasonal restrictions. The times at which the restrictions apply for other road markings are shown on nearby plates or on entry signs to controlled parking zones. If no days are shown on the signs, the restrictions are in force every day including Sundays and Bank Holidays. White bay markings and upright signs (see below) indicate where parking is allowed.

no-waiting-at-any-time

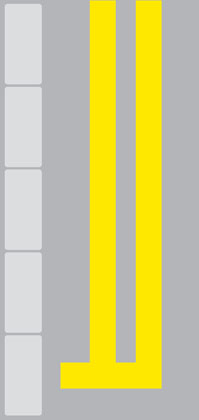

No waiting at any time

no-waiting-during-times-shown-on-sign

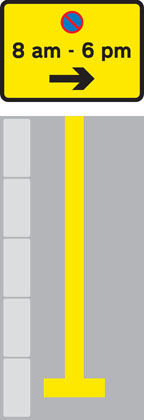

No waiting during times shown on sign

waiting-is-limited-to-the-duration-specified-during-the-days-and-times-shown

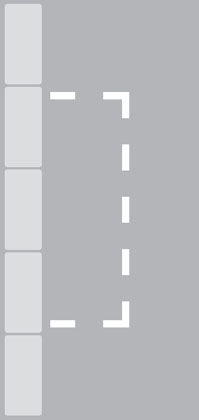

Waiting is limited to the duration specified during the days and times shown

no-stopping-at-any-time

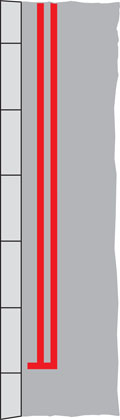

No stopping at any time

no-stopping-during-times-shown-on-sign

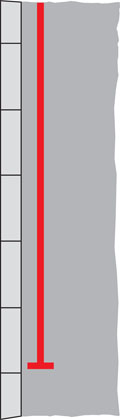

No stopping during times shown on sign

parking-is-limited-to-the-duration-specified-during-the-days-and-times-shown

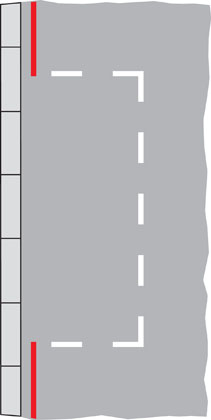

Parking is limited to the duration specified during the days and times shown

only-loading-may-take-place-at-the-times-shown-for-up-to-a-maximum-duration-of-20-mins

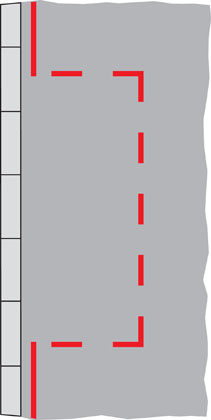

Only loading may take place at the times shown for up to a maximum duration of 20 mins

On the kerb or at the edge of the carriageway

Loading restrictions on roads other than Red Routes

Yellow marks on the kerb or at the edge of the carriageway indicate that loading or unloading is prohibited at the times shown on the nearby black and white plates. You may stop while passengers board or alight. If no days are indicated on the signs the restrictions are in force every day including Sundays and Bank Holidays.

ALWAYS CHECK THE TIMES SHOWN ON THE PLATES.

Lengths of road reserved for vehicles loading and unloading are indicated by a white ‘bay’ marking with the words ‘Loading Only’ and a sign with the white on blue ‘trolley’ symbol. This sign also shows whether loading and unloading is restricted to goods vehicles and the times at which the bay can be used. If no times or days are shown it may be used at any time. Vehicles may not park here if they are not loading or unloading.

no-loading-or-unloading-at-any-time

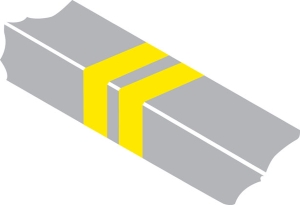

No loading or unloading at any time

no-loading-or-unloading-at-the-times-shown

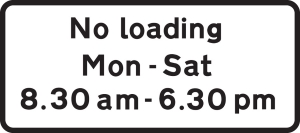

No loading or unloading at the times shown

loading-bay

Loading bay

Other road markings

keep-entrance-clear-of-stationary-vehicles-even-if-picking-up-or-setting-down-children

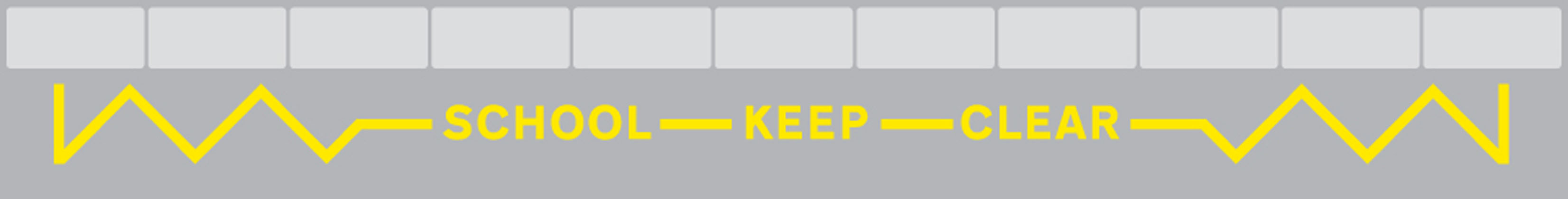

Keep entrance clear of stationary vehicles, even if picking up or setting down children.

warning-of-give-way-just-ahead

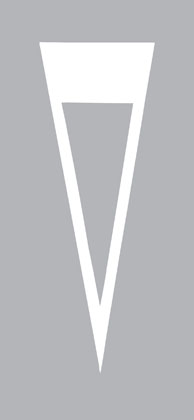

Warning of ‘Give Way’ just ahead

parking-space-reserved-for-vehicles-named

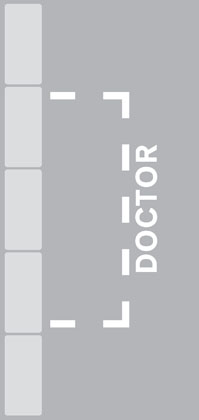

Parking space reserved for vehicles named

bus-stop

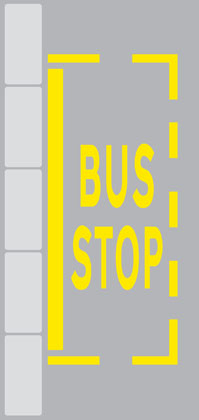

Bus stop

bus-lane

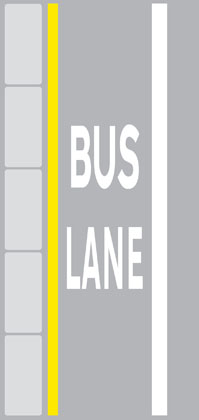

Bus lane

box-junction

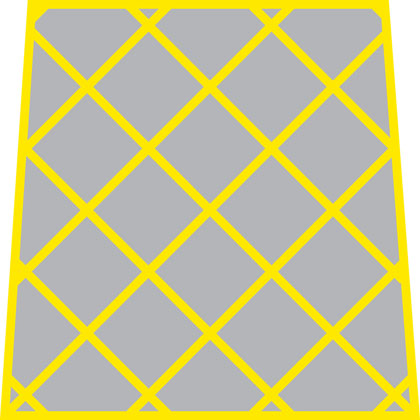

Box junction

do-not-block-that-part-of-the-carriageway-indicated

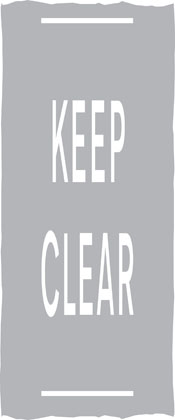

Do not block that part of the carriageway indicated

indication-of-traffic-lanes

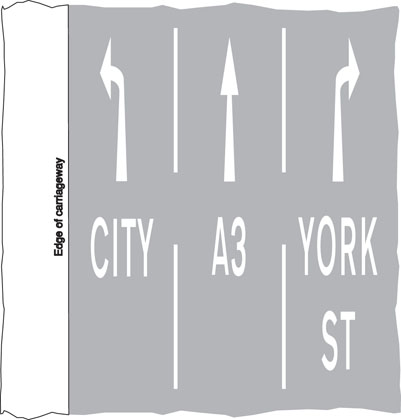

Indication of traffic lanes
